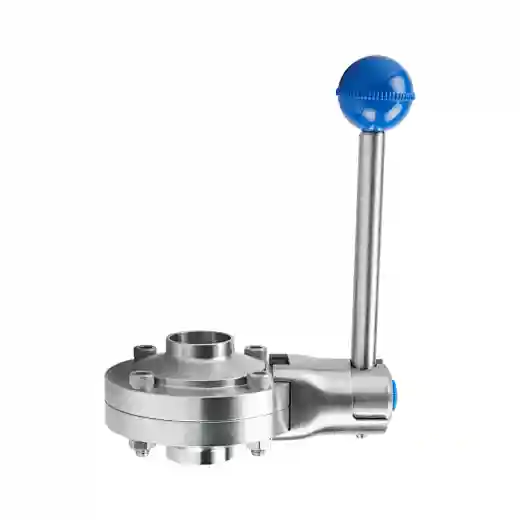

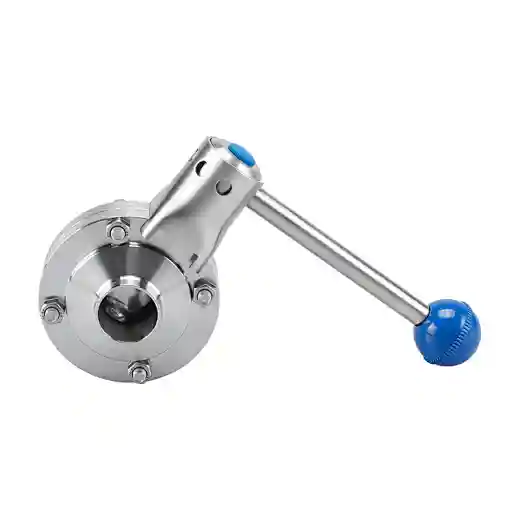

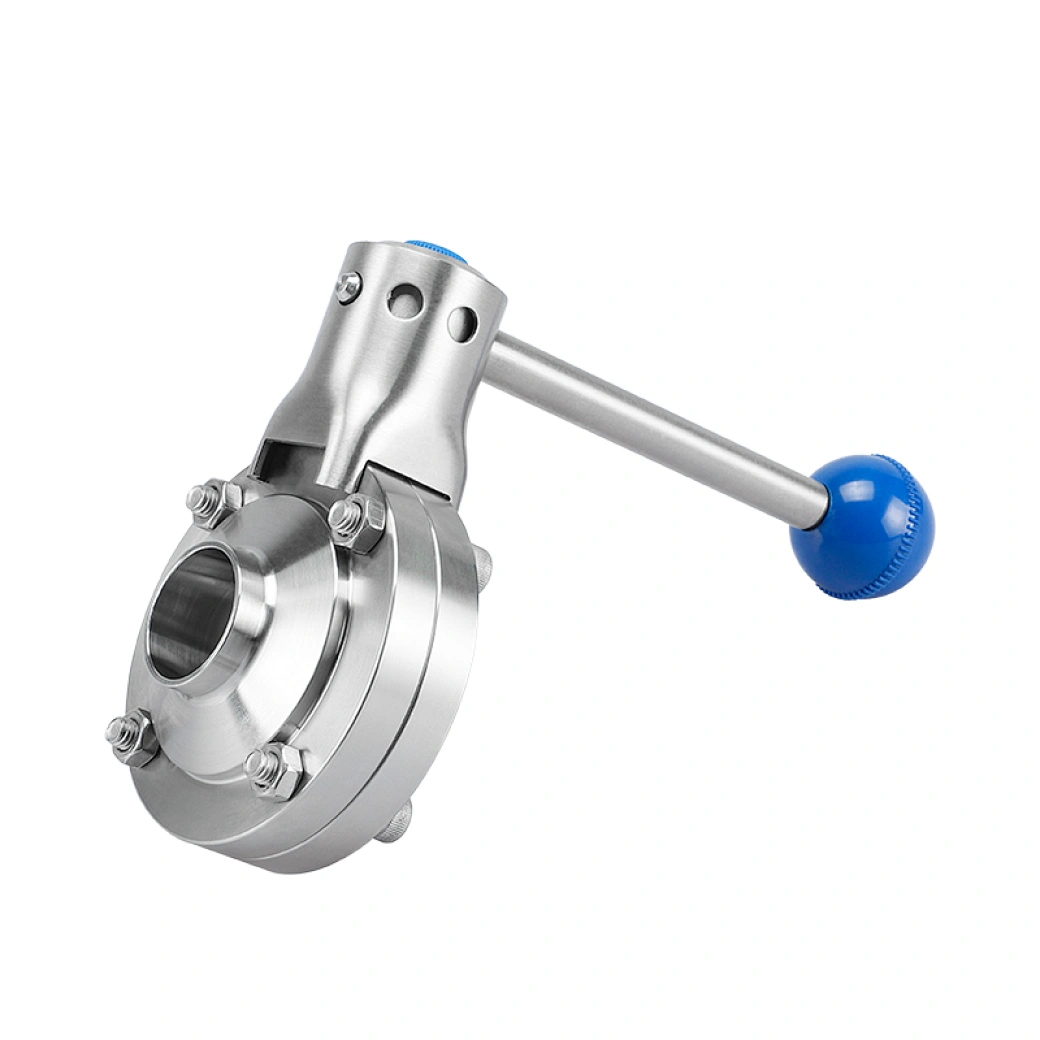

Sanitary Stainless Steel Butt-Weld Butterfly Valve with Pull Handle
DK.DF.HJ.SD.06
Place of Origin: Wenzhou China
Packing: Suitable Packing For Sea/Air Transport
Quantity: 1000000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Welding
Specification: 1"-6"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: EPDM/SILICON/NBR
Packing: Suitable Packing For Sea/Air Transport
Quantity: 1000000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Welding
Specification: 1"-6"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: EPDM/SILICON/NBR
Quantity
Sanitary Stainless Steel Butt-Weld Butterfly Valve with Pull Handle
- Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Sanitary Stainless Steel Butt-Weld Butterfly Valve with Pull Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Butt- weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel pull handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

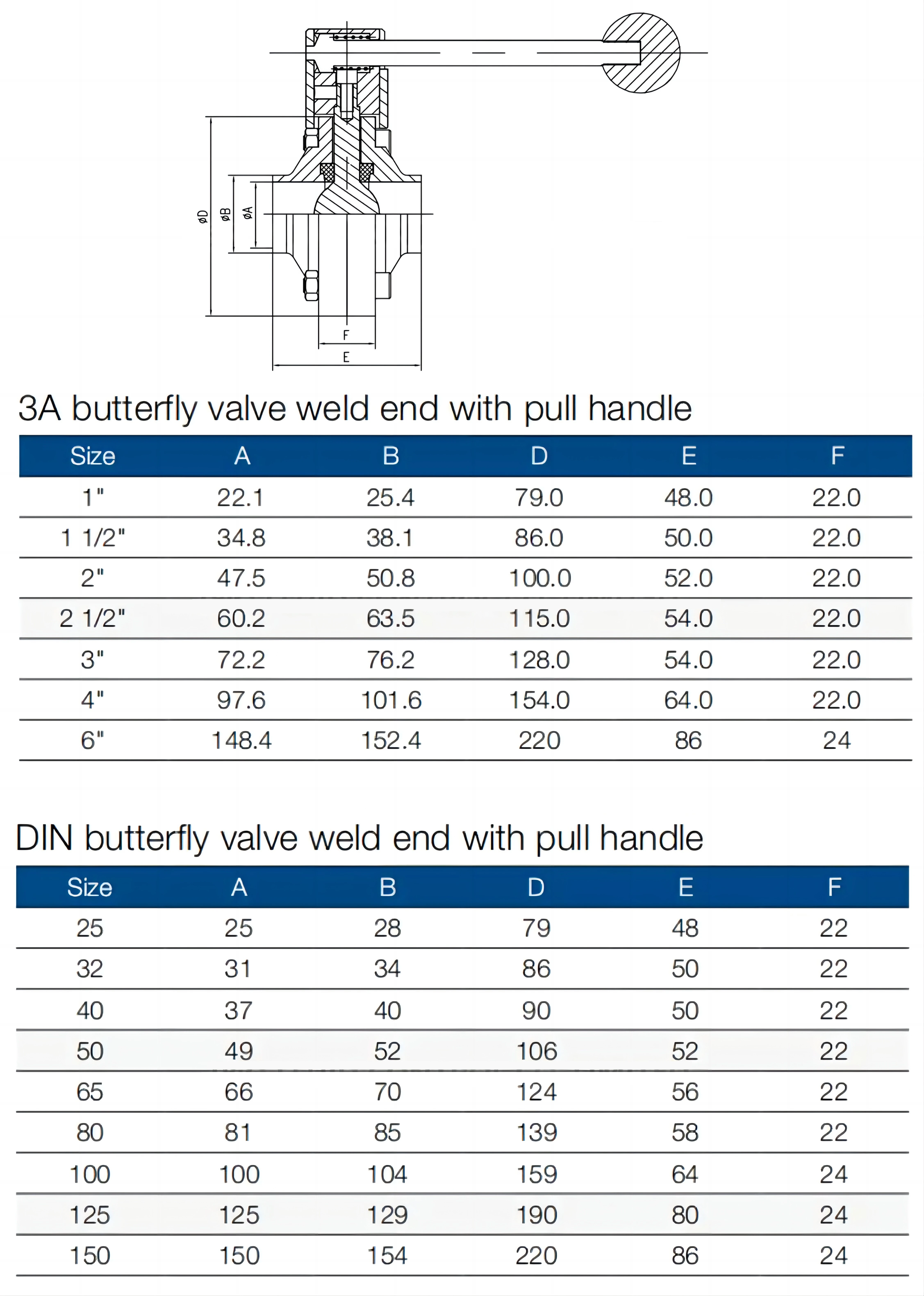

Product Parameter
