Sanitary Stainless Steel Welding Pneumatic Butterfly Valve

Sanitary Stainless Steel Welding Pneumatic Butterfly Valve

88
Place of Origin: Wenzhou China
Packing: Suitable Packing For Sea/Air Transport
Quantity: 1000000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Welding
Specification: 1"-4"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: EPDM/SILICON/NBR
Type: Pneumatic
Quantity
Contact Now
add to cart

Sanitary Stainless Steel Welding Pneumatic Butterfly Valve

  • Sanitary Butterfly Valve including Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name:
Sanitary Stainless Steel Welding Pneumatic Butterfly Valve
Valve Body Material:
1.4404/1.4301, SS304/SS316L
Seal Material:
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:
20Bar
Max. Working Temperature:
120 degree C
Availably size:
1"-6", DN25-DN150
Availably connection:
Welding
Availably standard:
3A/DIN/SMS/RJT/ISO/IDF
Operated:
Pneumatic
Control:
Sensor, C-TOP, C-top controller(AS-I)
Certificate:
ISO, PED/97/23/EC, FDA.177.2600
Application scope:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc


Product Parameter

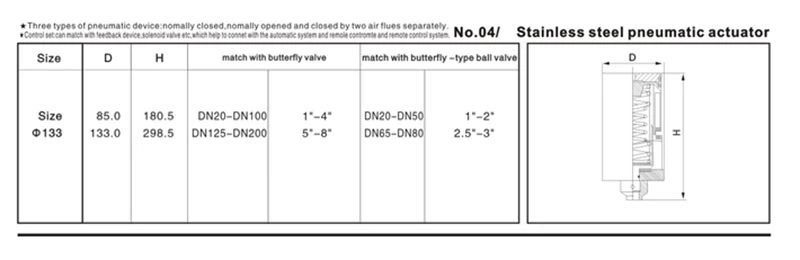

stainless steel pneumatic actuator parameter
