Santiary Stainless Steel Butterfly Valve With Pull Handle

Sanitary Stainless Steel Butterfly Valve With Gripper Handle

33
Place of Origin: Wenzhou China
Packing: Suitable Packing For Sea/Air Transport
Quantity: 1000000 PCS Per Year
Payment:T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Welding,Thread,Clamped
Specification: 1"-4"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: EPDM/SILICON/NBR
Quantity
Contact Now
add to cart

Sanitary Stainless Steel Butterfly Valve With Gripper Handle

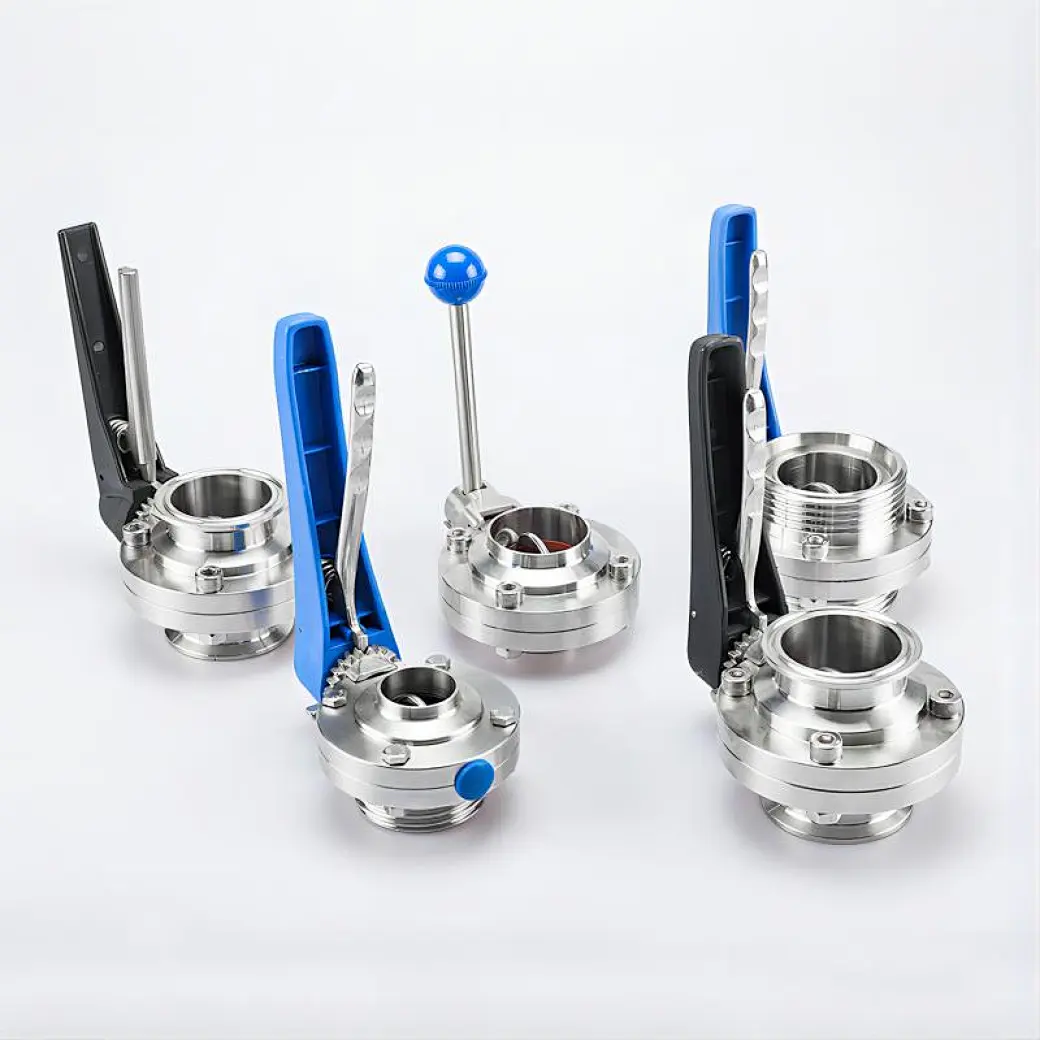

  • Our Manual Sanitary Butterfly Valve including Sanitary Welding Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve. For the handle, we have Stainless Steel Pull Handle, Plastic Gripper Handle and Stainless Steel Gripper Handle.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description


Product Name:
 Sanitary Stainless Steel Butterfly Valve
Valve Body Material:
 1.4404/1.4301, SS304/SS316L
Seal Material:
 EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:
 20Bar
Max. Working Temperature:
120 degree C
Availably  size:
DN10-DN150,3/4"-4"
Availably connection:
 weld,thread,clamp
Availably standard:
3A/DIN/SMS/RJT/ISO/IDF
Operated:
Manual
Control:
Sensor, C-TOP, C-top controller(AS-I)
Certificate:
 ISO, PED/97/23/EC, FDA.177.2600
Handle application:
 stainless steel pull handle
Application scope:
 Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
