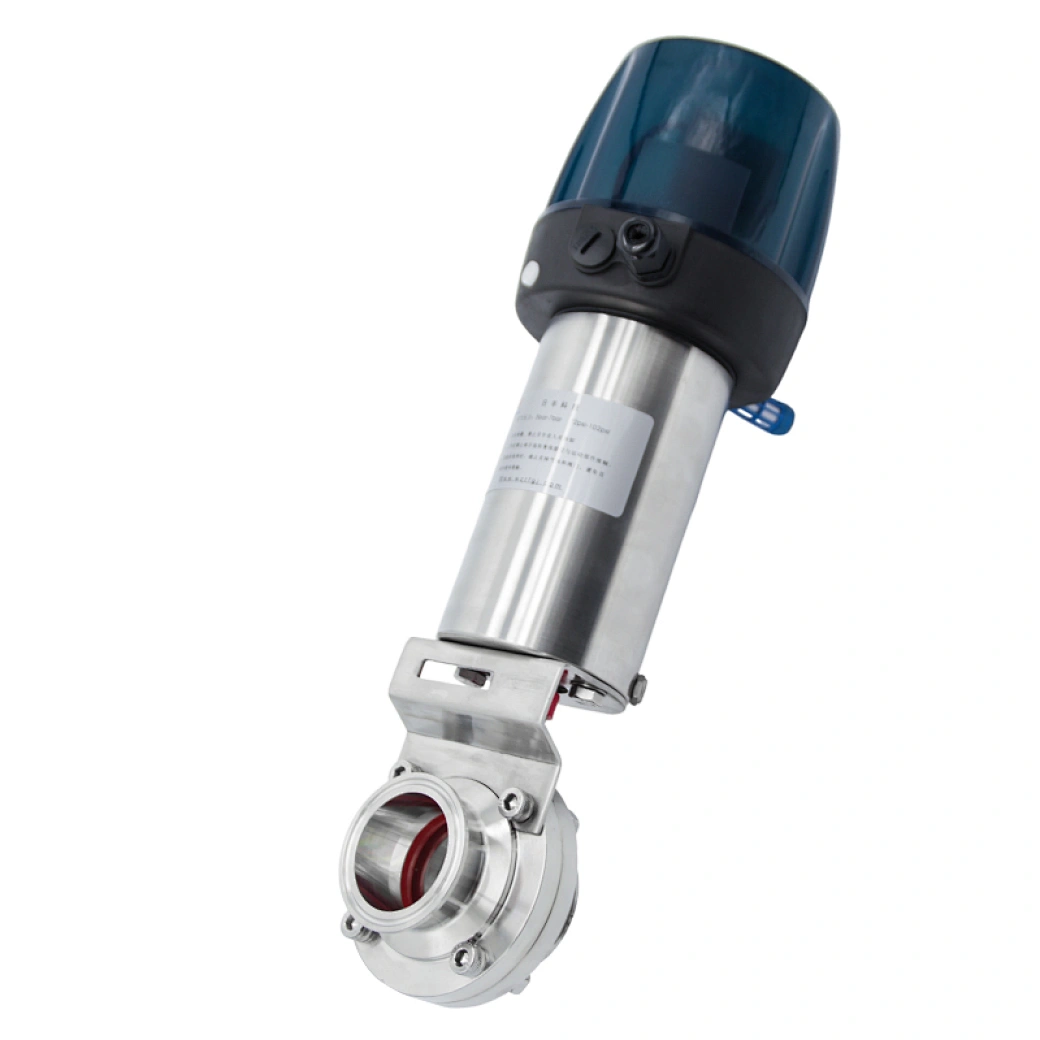

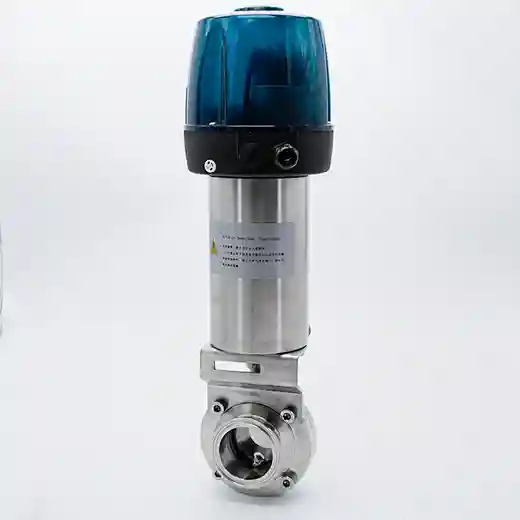

Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve
Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve
Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve
Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve

Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve

66
Place of Origin: Wenzhou China
Packing: Suitable Packing For Sea/Air Transport
Quantity: 100000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Clamped
Specification: 1"-6"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: EPDM/SILICON/NBR
Quantity
Contact Now
add to cart

Hygienic Stainless Steel Sanitary Pneumatic Actuator Positioner Butterfly Valve

  • We manufacture Pneumatic Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Pneumatic Butterfly Valve, Hygienic Male Thread Pneumatic Butterfly Valve, Intelligent Type Pneumatic Butterfly Valve. For the Pneumatic Actuator, we can supply Stainless Steel Actuator and Aluminum Actuator. And we can install the Position Sensor and Solenoid Valve.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name:
Hygienic Stainless Steel Sanitary Pneumatic Actuator Butterfly Valve
Valve Body Material:
1.4404/1.4301, SS304/SS316L
Seal Material:
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max working pressure:
20Bar
Max. Working Temperature:
120 degree C
Availably size:
1"-6", DN25-DN150
Availably connection:
Clamped
Availably standard:
3A/DIN/SMS/RJT/ISO/IDF
Operated:
Pneumatic
Control:
Sensor, C-TOP, C-top controller(AS-I)
Certificate:
ISO, PED/97/23/EC, FDA.177.2600
Application scope:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
