Sanitary Stainless Steel Union Type Weld Sight Glass
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 Piece/Pieces per Month
Payment:T/T, L/C, Western Union

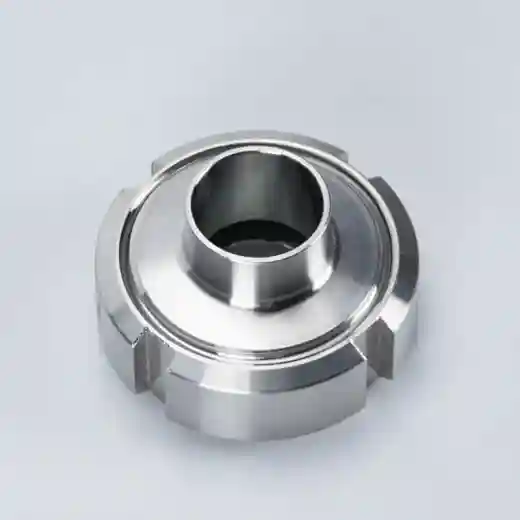

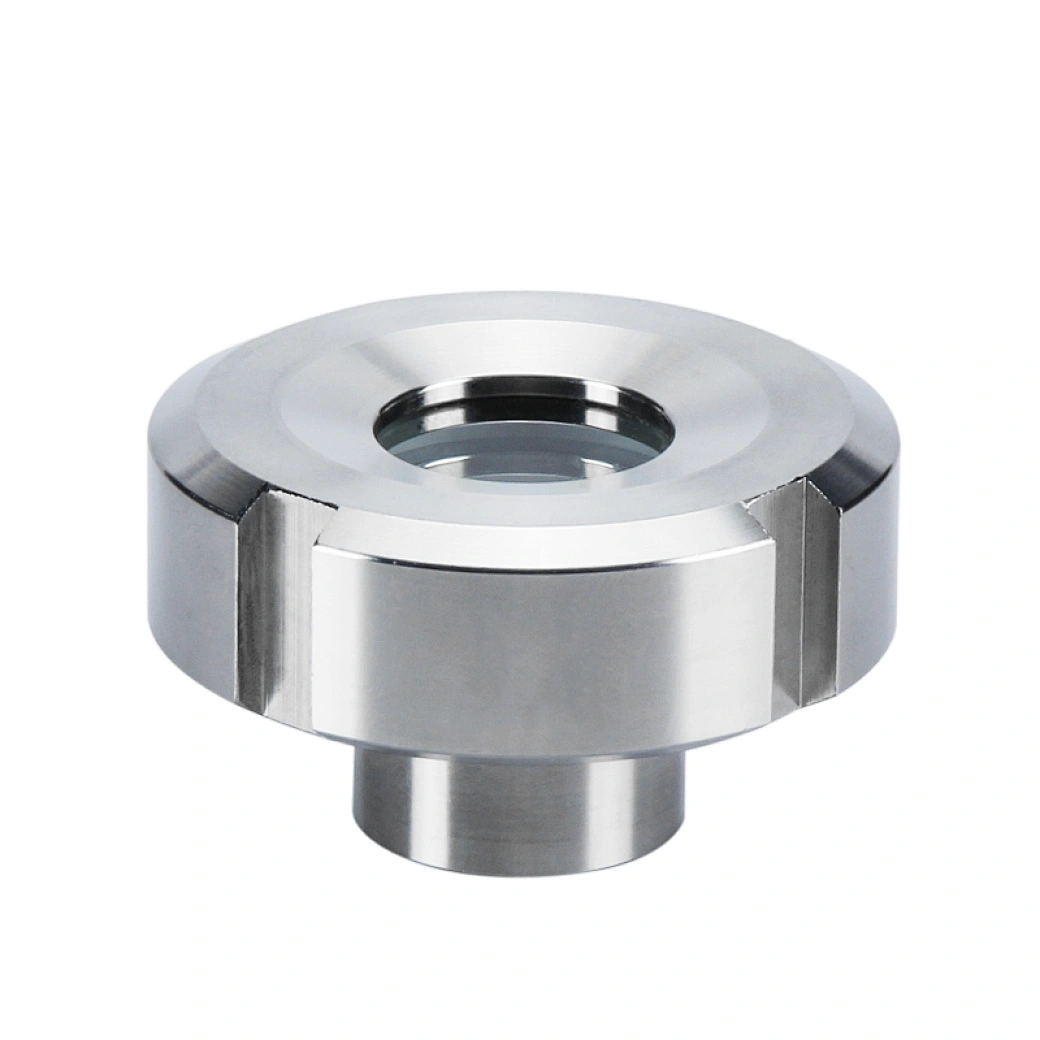

Sanitary Stainless Steel Union Type Sight Glass
- We manufacture Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Lamp.
- Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.
- It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4"to 6"sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.
SMS,DIN,3A,IDF,RJT, BS, ISO
Welding ends,triclamp ends,union ends,male ends
Silicone, EPDM, Viton, NBR
Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
Tubing; Acrylic Tubing; etc
Protection Lens Cover
Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel
Full Stainless Steel
The most advanced CNC machine from Japan for processing
Continuous working temperature
20°C ~ +135°C (EPDM,Silicone)
we can produce according to your drawings
