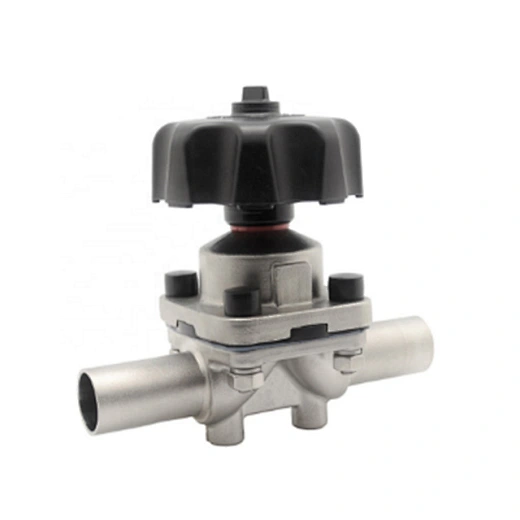

Sanitary Stainless Steel Mini Diaphragm Valve With Plastic Wheel

Sanitary Stainless Steel Mini Diaphragm Valve With Plastic Wheel

287
Place of Origin:Wenzhou, China
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 Piece/Pieces per Month
Payment:T/T, L/C, Western Union
Medium:Beer, Dairy, Beverage, Pharmacy
Material:SS316L
Connection:Welding
Specification:DN8, DN10
Gasket:EPDM+PTFE
Quantity
Contact Now
add to cart

Sanitary Stainless Steel Mini Diaphragm Valve With Plastic Wheel

  • Our Sanitary Pharmacy Aseptic Diaphragm Valve including Sanitary Butt Weld Diaphragm Valve, Hygienic Tri Clamp Diaphragm Valve, Sanitary Manual Diaphragm Valve, Hygienic Pneumatic  Diaphragm Valve, Sanitary 3 Way Diaphragm Valve.
  • Diaphragm valves, manually or pneumatically operated, and specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries. The valve is excellent for flow control as well as for open/close duties. The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
  • With CNC precision machining, ensure the sealing surface and fir the diaphragm valve chamber solitary degrees, reducing the diaphragm.
  • Valve chamber surface finish can be mechanical or electrolytic polishing according to customer requirements, polishing face smooth reach 0.25um.

Product Description

Material quality:
AISI304, AISI316L
Standard:
3A/DIN/SMS/ISO/IDF
Flux domination of pipeline:
DN8, DN10
Working principle:
Remote-controlled operation by the driving gear or manual operation by the handle
Three drive forms:
Normally closed, normally opened and opened & closed by two air flues separately.
Medium:
Beer, Dairy, Beverage, Pharmacy

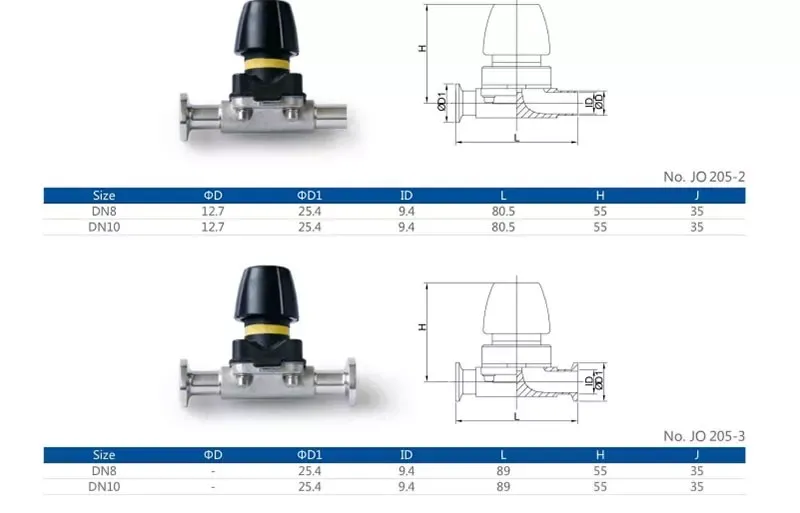

Product Parameter
