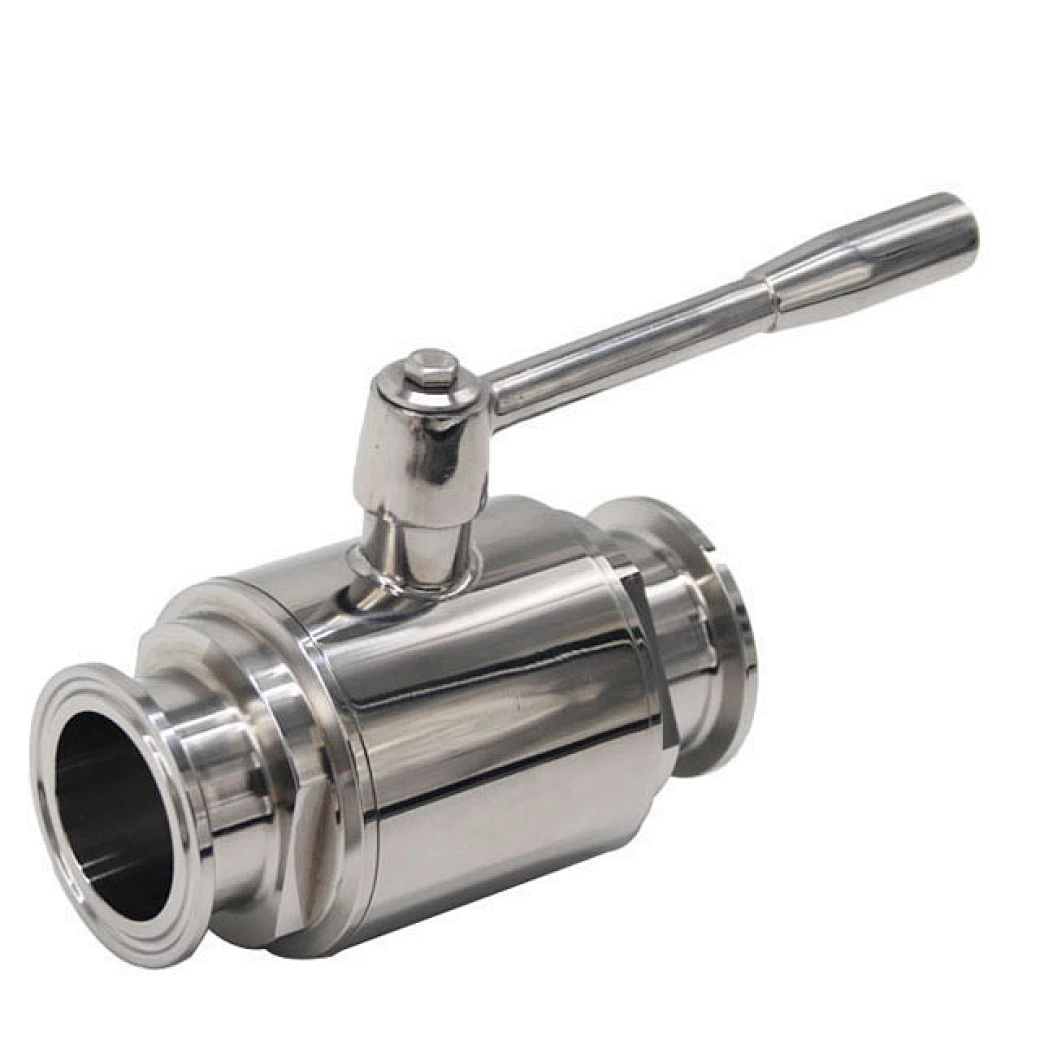

Sanitary Stainless Steel Hygienic Tri-Clamp Ball Valve
143
Place of Origin: Wenzhou, China
Packing: Suitable Packing for Sea/Air Transport
Quantity: 20000 PCS Per Year
Payment:T/T, L/C, Western Union
Medium: Water, Oil
Material:SS304/SS316L
Connection:Clamped
Specification:3/4"-4"
Pressure:0-10Bar
Temperature:-20°~120°
Gasket:PTFE
Packing: Suitable Packing for Sea/Air Transport
Quantity: 20000 PCS Per Year
Payment:T/T, L/C, Western Union
Medium: Water, Oil
Material:SS304/SS316L
Connection:Clamped
Specification:3/4"-4"
Pressure:0-10Bar
Temperature:-20°~120°
Gasket:PTFE
Quantity
Sanitary Stainless Steel Tri-Clamp Ball Valve
- Sanitary Ball Valve including Sanitary Manual Direct Way Ball Valve, Hygienic Pneumatic Ball Valve, Sanitary Electric Actuator Ball Valve, Sanitary Butt-weld Ball Valve, Hygienic Male Ball Valve, Hygienic Tri-Clamp Ball Valve.
- Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.
Product Description
Size: | 1/2"-4", DN10-DN100 |
Temperature: | -20C-120 C |
Pressure: | 10 Bar |
Material: | AISI304, AISI316L |
Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
Connection: | Clamp, Weld, Male, Flange, Standard With 3A, SMS, DIN, RJT, IDF. |
Advantage: | Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators. |
Certificate: | PED/97/23/EC |

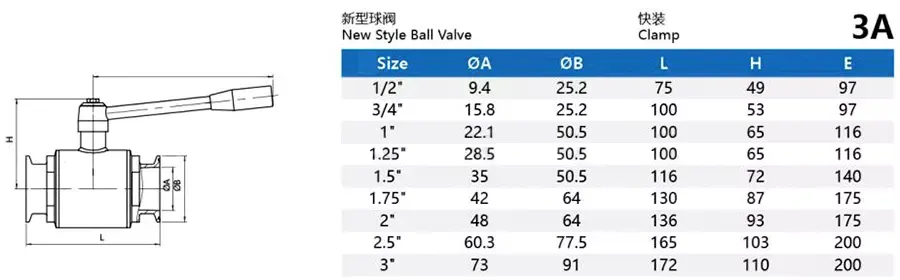

Product Parameter
