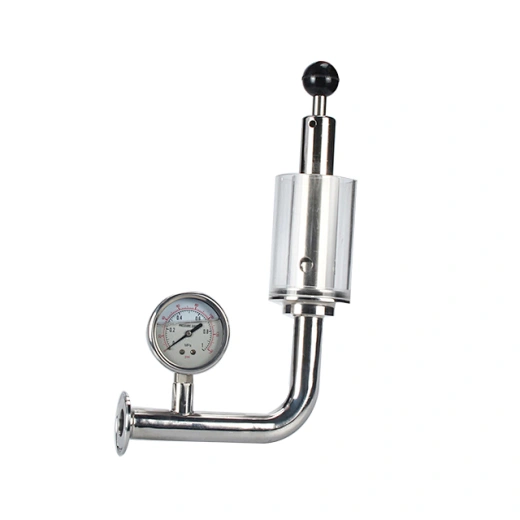

Sanitary Stainless Steel Exhaust Valve With Pressure Guage Union End
184
Place of Origin:Wenzhou, China
Packing:Suitable Packing for Sea/Air Transport
Quantity:10000 PCS Per Year
Payment:T/T, L/C, Western Union
Material:SS304, SS316L
Connection:Union
Packing:Suitable Packing for Sea/Air Transport
Quantity:10000 PCS Per Year
Payment:T/T, L/C, Western Union
Material:SS304, SS316L
Connection:Union
Quantity
Sanitary Stainless Steel Exhaust Valve With Pressure Guage Union End
- Our Sanitary Air Exhaust Valve including Sanitary Clamped Air Relife Valve, Hygienic Thread Pressure Relief Safety Valve, Stainless Steel Safety Exhaust Valve With Pressure Guage.
- The series safety valve is to adjust the spring compression nut to calibrate a particular pressure.the calibration of pressure is to fix the maximum pressure to avoid the equipment damage. In the normal working operating pressure,the valve is closed.When the system pressure exceeds the fsysterm and the equipment.The valve is with start the open device for the CIP cleaning of the safety valve and the piping.
- The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions, so the conditions shoud be as mush as possible the scene of the valve and then parity.
Product Description
Working Pressure: | ≤6bar |
Pressure Control Range: | 0.5-6 bar |
Medium Temperature: | -10 celsius degree-+120 celsius degree |
Medium: | liquid material,gas |
Sealing: | Food Rubber |
Material Quality: | SS304,SS316L |
Connection of Standard: | DIN,3A,SMS,ISO |
Ends: | Male ends,Tri clamp ends,Welded ends |
Surface treatment: | Ra 0.8um |
