Sanitary Stainless Steel Cross Sight Glass
338
Place of Origin:Wenzhou, China
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 Piece/Pieces per Month
Payment:T/T, L/C, Western Union
Medium:Water
Material:SS304, SS316L
Connection:Welding
Protective sleeve:AISI 304, AISI316L
Glass:Tempered Glass
Gasket:VMQ FDA 177.2600
Surface treatment:CNC lathe
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 Piece/Pieces per Month
Payment:T/T, L/C, Western Union
Medium:Water
Material:SS304, SS316L
Connection:Welding
Protective sleeve:AISI 304, AISI316L
Glass:Tempered Glass
Gasket:VMQ FDA 177.2600
Surface treatment:CNC lathe
Quantity

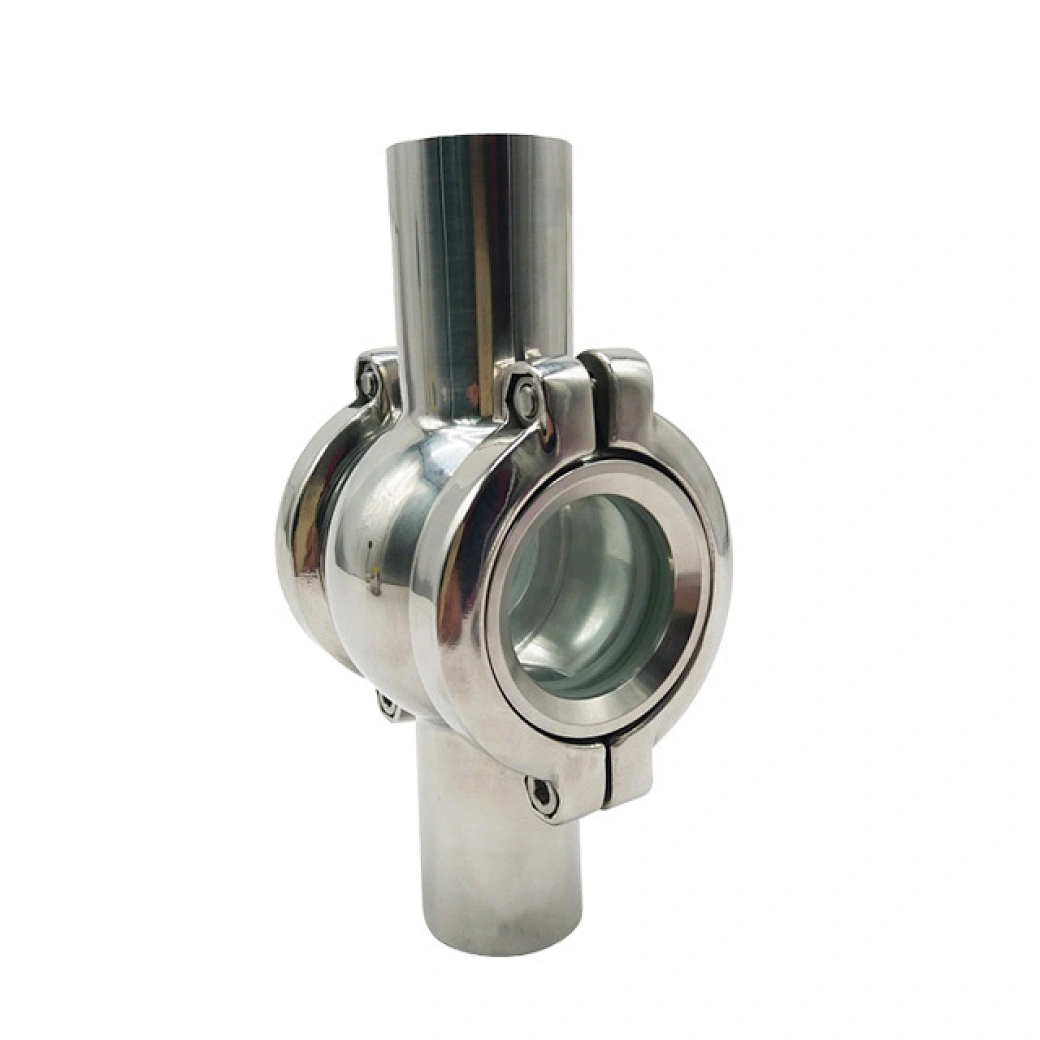

Sanitary Stainless Steel Cross Sight Glass
- Our Sanitary Sight Glass including Sanitary Welded Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.
- The hygienic sight glass products are made by forged material.
- Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.
- Screw Blot: Full Stainless Steel. EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.
- It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.
Product Description

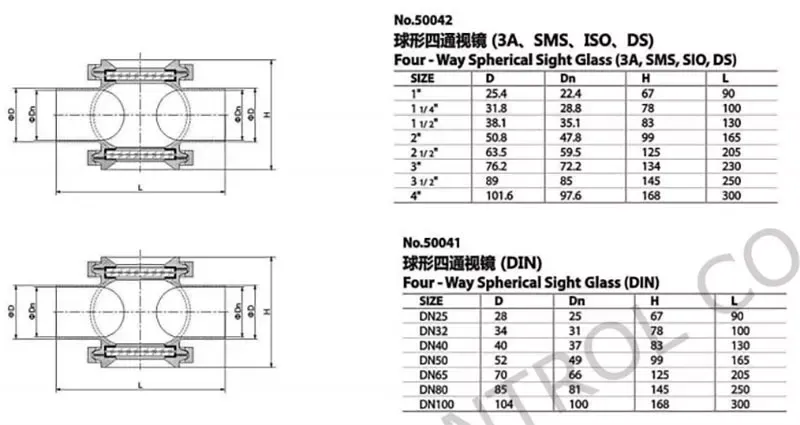

Product Name: | Cross Sight Glass |
Material: | SS304 or SS316L |
Standard: | 3A, SMS, DIN, RJT, IDF |
Size: | 1"-4"or DN25-DN100 |
Connection Way: | Weld, Clamp, Thread, Flange or Combinations |
Seal Material: | Silicone, EPDM, Viton, NBR |
Surface Treatment: | CNC machining |
Working Temperature: | -10 degree to +120 degree (EPDM) |
Application: | Food,wine-produceing,beverage and pharmacy,etc. |
Packing Details: | Carton box or plywood case |
Product Parameter
