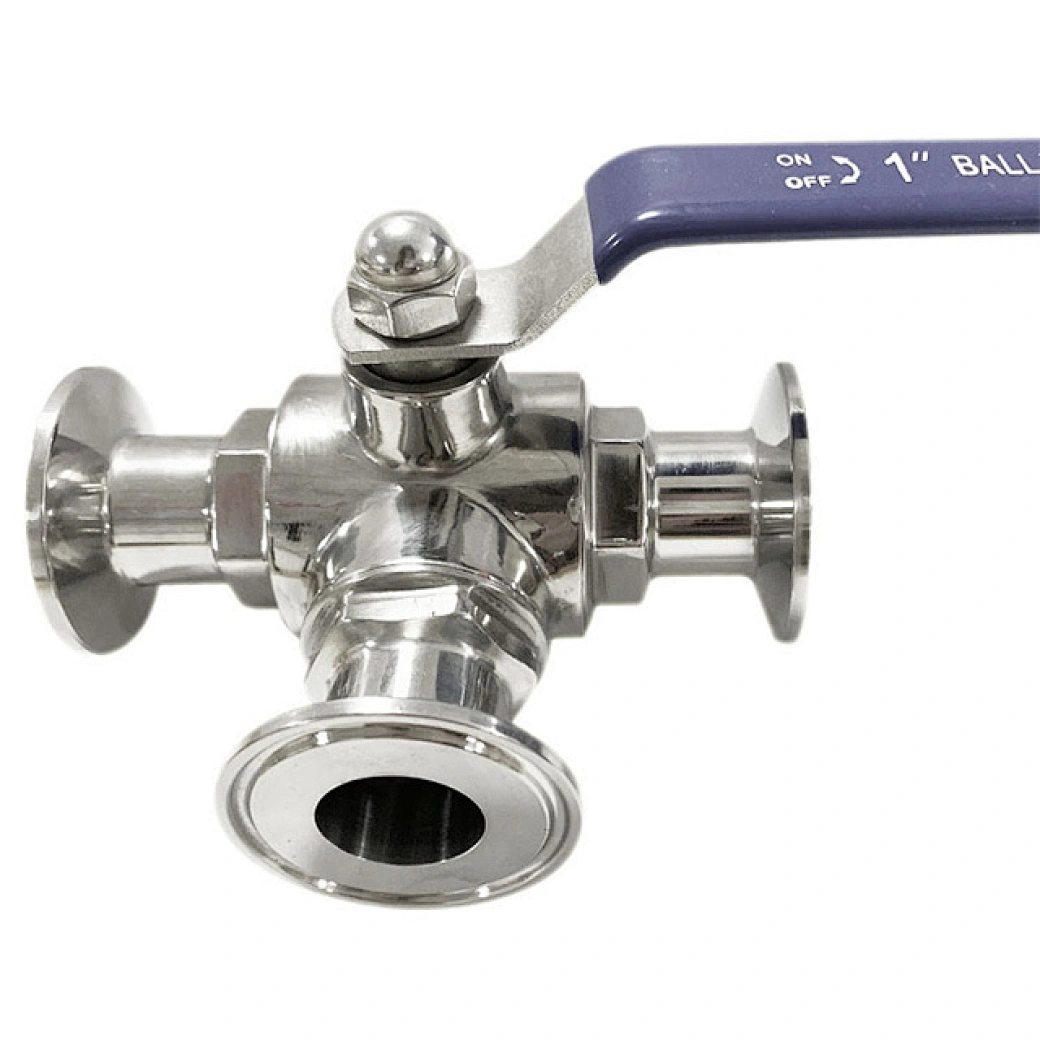

Sanitary Manual 3 Way T/L TC Clamp Ball Valve With Mounting Pad
155
Place of Origin:Wenzhou, China
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 PCS Per Year
Payment:T/T, L/C, Western Union
Medium:Water, Oil
Material:SS304/SS316L
Connection:Clamped
Specification:3/4"-4"
Pressure:0-10Bar
Temperature:-20°~120°
Gasket:PTFE
Type:T Type/L Type
Packing:Suitable Packing for Sea/Air Transport
Quantity:1000 PCS Per Year
Payment:T/T, L/C, Western Union
Medium:Water, Oil
Material:SS304/SS316L
Connection:Clamped
Specification:3/4"-4"
Pressure:0-10Bar
Temperature:-20°~120°
Gasket:PTFE
Type:T Type/L Type
Quantity
Sanitary Manual 3 Way T/L TC Clamp Ball Valve With Mounting Pad
- We can supply Sanitary T Port Ball Valve, Hygienic L Port Ball Valve, Sanitary Encapsulated Three Way Ball Valve, Sanitary Butt-weld 3 Way Ball Valve, Hygienic Male Thread Three Ways Ball Valve, Hygienic Tri-Clamp 3 Ways Ball Valve, Hygienic Pneumatic 3 Way Ball Valve, Sanitary Electric Actuator 3 Way Ball Valve.
- Both Manual And Automatic Operated Hygienic 3-Way Ball Valve Are Mainly Used In Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.
Product Description
Size: | 1/2"-4", DN10-DN100 |
Temperature: | -20ºC-120ºC |
Pressure: | 10 Bar |
Material: | AISI304, AISI316L |
Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
Connection: | Clamp |
Advantage: | Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators. |
Certificate: | PED/97/23/EC |

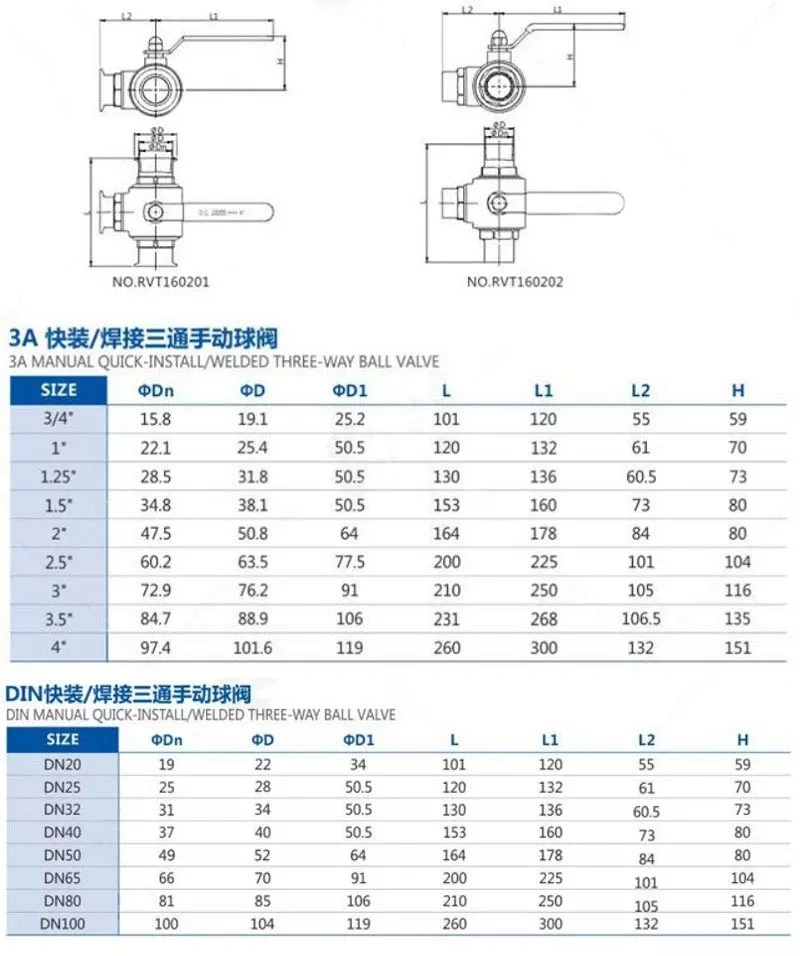

Product Parameter
