Pneumatic Flange Ends Angle Seat Valve

Pneumatic Flange Ends Angle Seat Valve

229
Place of Origin:Wenzhou, China
Packing:Suitable Packing for Sea/Air Transport
Quantity:10000 PCS Per Year
Payment:T/T, L/C, Western Union
Material:SS304, SS316
Connection:Flanged
Type:Pneumatic
Quantity
Contact Now
add to cart

Pneumatic Flange Ends Angle Seat Valve

  • We can supply Pneumatic Butt Weld Angle Seat Valve, Pneumatic Tri Clamped Angle Seat Valve, Female Pneumatic Angle Seat Valve, Flanged Angle Seat Valve.
  • Large flux, small flux resistance, no water hammer.  Stem automatic correction, self-lubrication, without maintenance.
  • Y type design, 30% increase in traffic. Angle seat valve can be installed in any position, can rotate 360 degree.
  • Cylinder adopts stainless material or polyamide PA can satisfy the use in harsh environment.

Product Description

Ambient temperature:
-30~+80ºc
Nominal diameter:
DN15~DN100mm
Nominal pressure:
1.0~1.6mpa
Connection:
Thread, flange, clamp, weld.
Body structure:
One-piece
Body material:
304, 316, 316l.
Spool material:
304, 316, 316l.
Seal material:
PTFE, F46.
Appliance medium:
Steam, water, air, oil, gas etc.

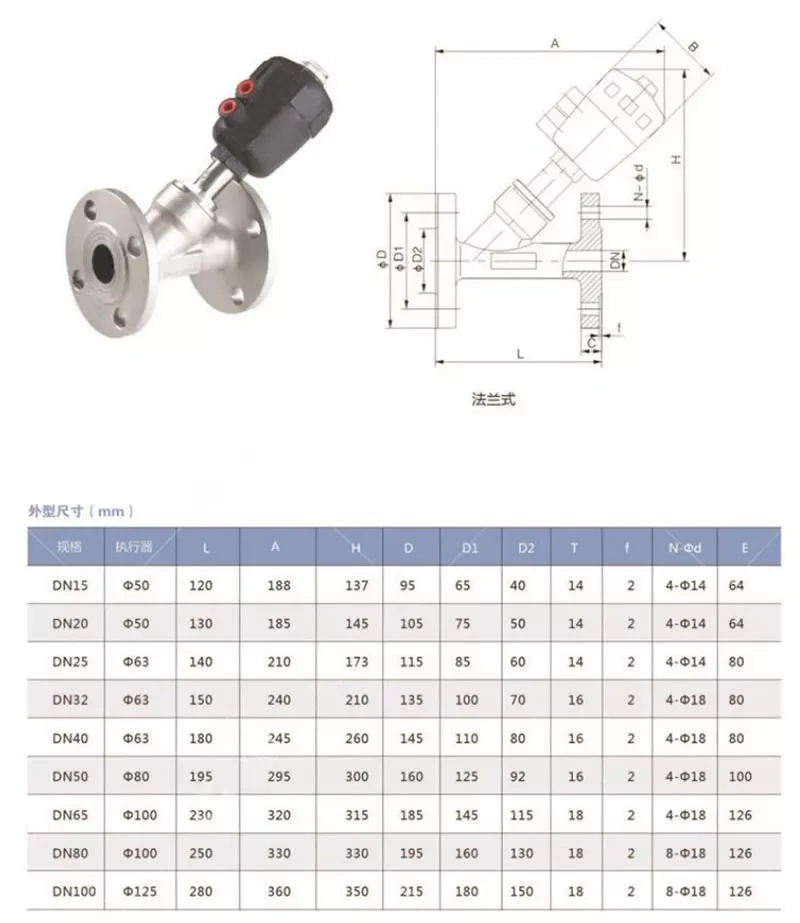

Product Parameter
