Sanitary Stainless Steel Oval Inward Manhole
DK.TY.NK.RK.04
Place of Origin: Wenzhou, China
Packing: Suitable Packing for Sea/Air Transport
Quantity: 500000 PCS Per Year
Payment: T/T, L/C, Western Union
Material: SSS304, SS316L
Connection: Welding
Shape: Oval
Packing: Suitable Packing for Sea/Air Transport
Quantity: 500000 PCS Per Year
Payment: T/T, L/C, Western Union
Material: SSS304, SS316L
Connection: Welding
Shape: Oval
Quantity

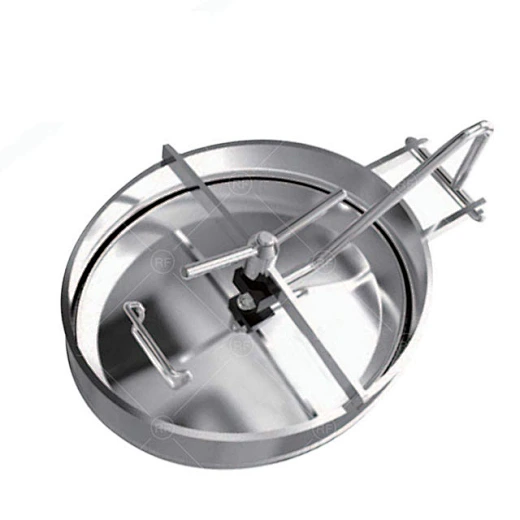

Sanitary Stainless Steel Oval Inward Manhole
- Our Sanitary Stainless Steel Manhole including Hygienic Circular Manway Cover, Sanitary Oval Manhole, Hygienic Square Manhole, Sanitary Pressure Manway, Sanitary Stainless Steel Manhole with Sight Glass.
- Manhole cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.
- All Stainless steel manhole cover are produced in both AISI 304L and AISI 316L stainless steel and can be supplied with the gasket in several different food grade materials (natural rubber, NBR, EPDM, silicone, viton & FEP/PFA-encapsulated).
Product Description
Product Name: | Oval Inward Manway |
Material: | SS304 or SS316L |
Standard: | 3A, SMS, DIN, RJT, IDF |
Size: | 8"-24"(200mm-600mm) |
Height: | 100mm |
Thickness: | 3mm |
Handle Material : | Stainless steel and plastic |
Handle number: | 4-6 pieces |
Type: | With sight glass or without. |
Seal Material: | Silicone, EPDM, Viton, NBR |
Surface Finishing: | Ra≤0.8 |
Working Temperature: | -10 degree to +120 degree (EPDM) |
Packing Details: | Carton box,plywood case or customized |

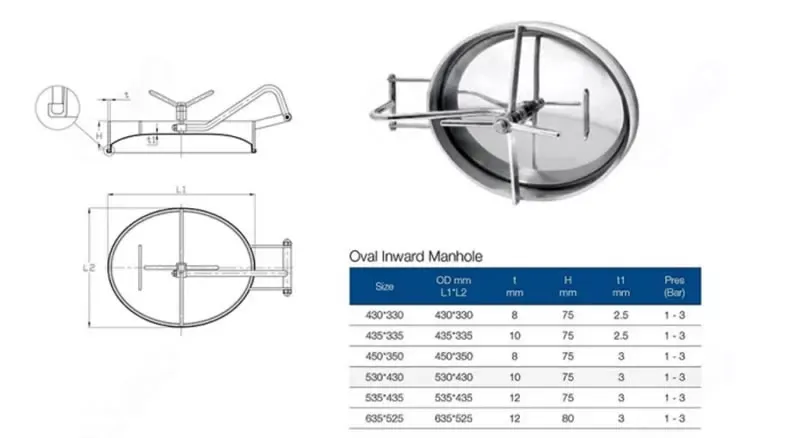

Product Parameter
