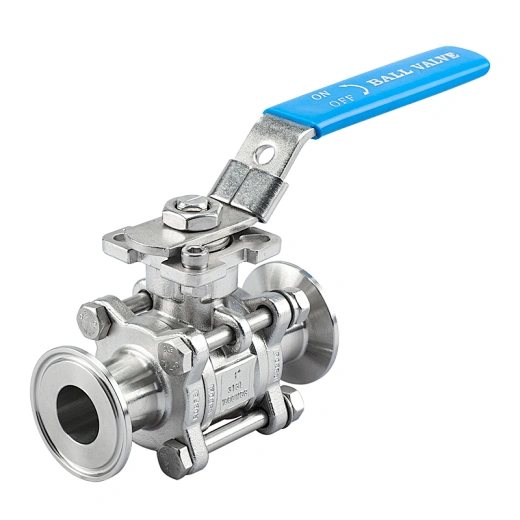

Sanitary 3 PCS Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve
Q11
Place of Origin: Wenzhou, China
Packing: Suitable Packing for Sea/Air Transport
Quantity: 10000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Clamped
Specification: 3/4"-4"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: 0PTFE
Packing: Suitable Packing for Sea/Air Transport
Quantity: 10000 PCS Per Year
Payment: T/T, L/C, Western Union
Medium: Water, Oil
Material: SS304/SS316L
Connection: Clamped
Specification: 3/4"-4"
Pressure: 0-10Bar
Temperature: -20°~120°
Gasket: 0PTFE
Quantity
Sanitary 3 PCS Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve With ISO5211 Mounting Pad
- Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve, Hygienic Male 3 Pieces Ball Valve, Hygienic Tri-Clamp 3 PC Ball Valve, Hygienic Pneumatic 3 PCS Ball Valve, Sanitary Electric Actuator 3 Pieces Ball Valve.
Sanitary 3-piece ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
Product Description
Product Name: | Sanitary 3 PCS Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve |
Valve Body Material: | SS304/SS316L |
Seal Material: | PTFE |
Mex working pressure: | 10Bar |
Max. Working Temperature: | 180 degree C |
Availably size: | 1"-4", DN25-DN100 |
Availably connection: | Clamp, weld, thread |
Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
Operated: | Manual |
Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

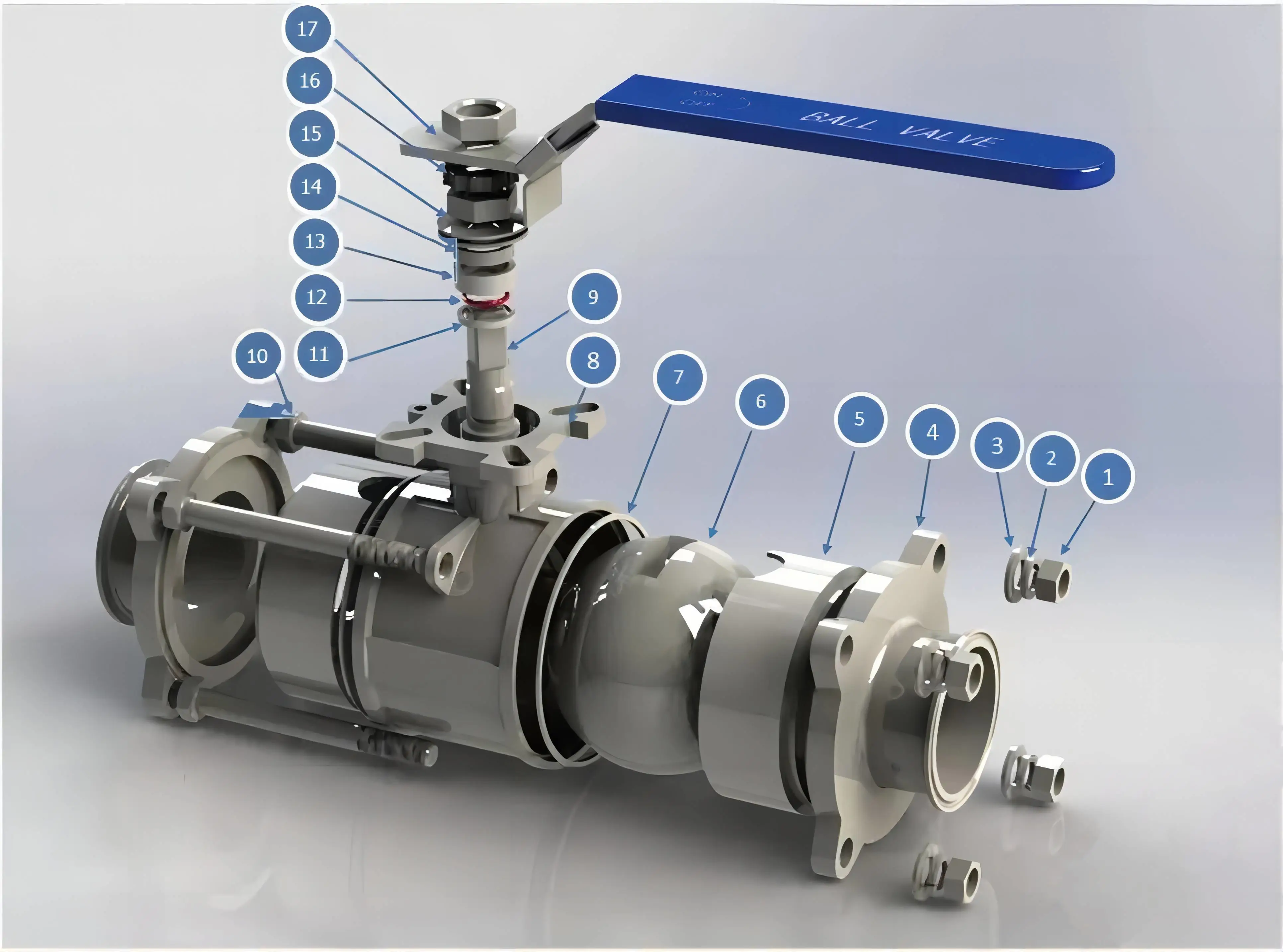

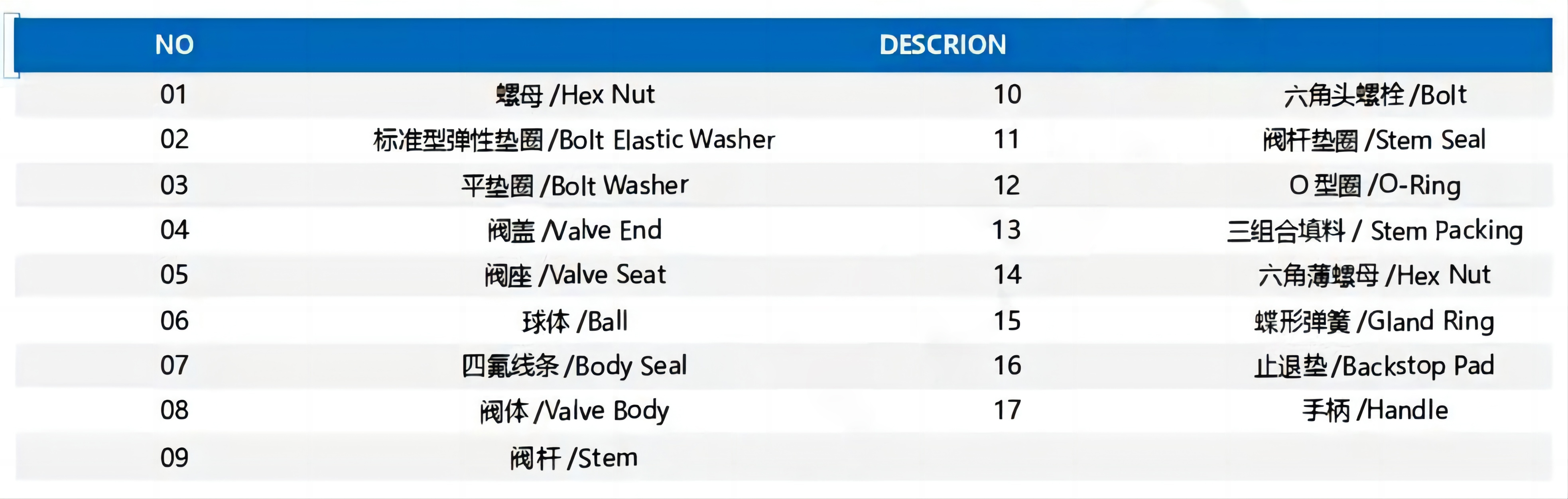

Product exploded view

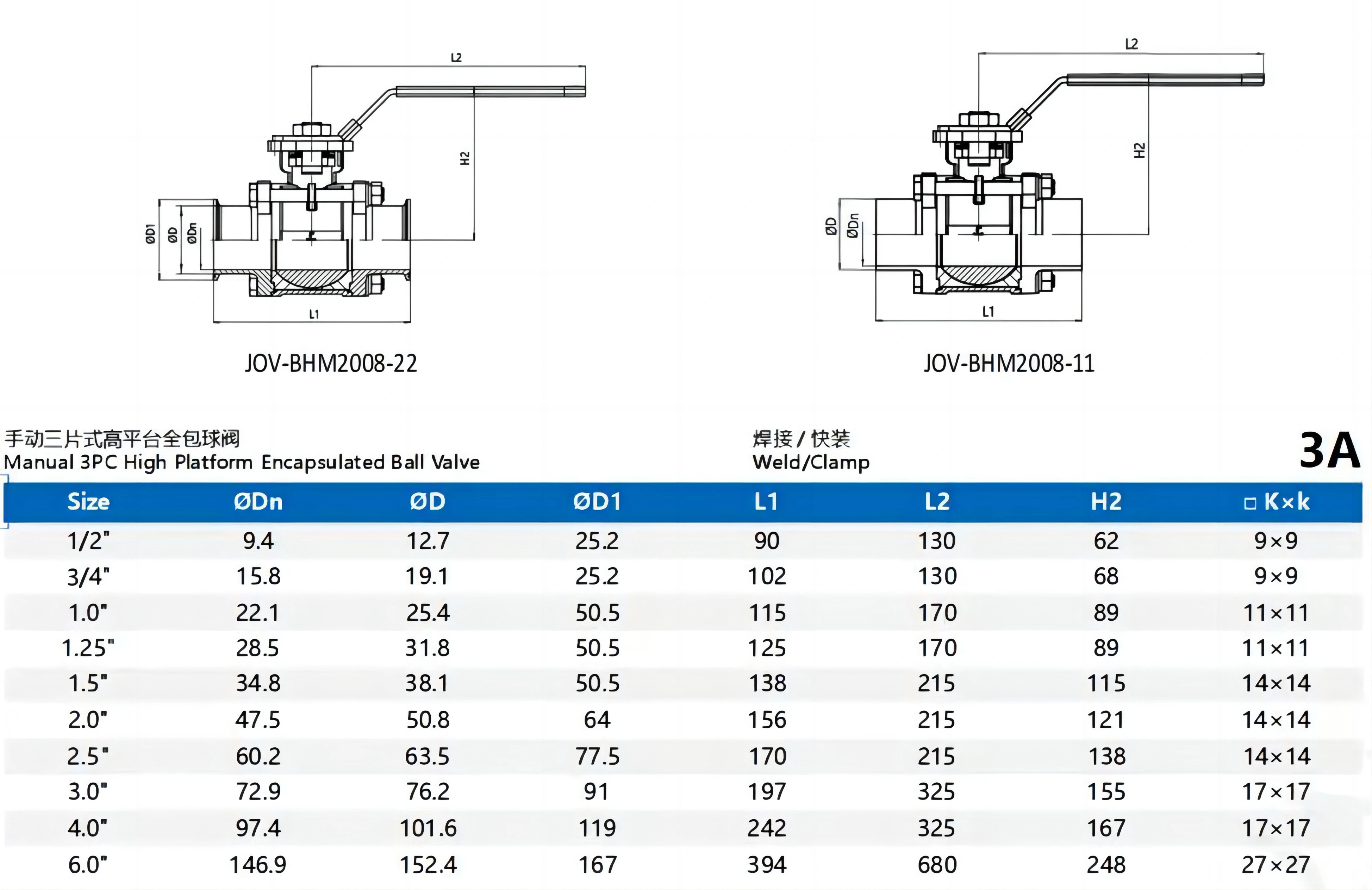

Product Parameter
